Human Body Scanner
G13 Super Pro
- 13 rods ,with 78 lens and one computer
- 0.01 second to scan/collection
- 78 photos ,2 minutes to build model drawing
- it can scan whole team, up to 6-10 people
- Put for super mall ,high pedestrian place

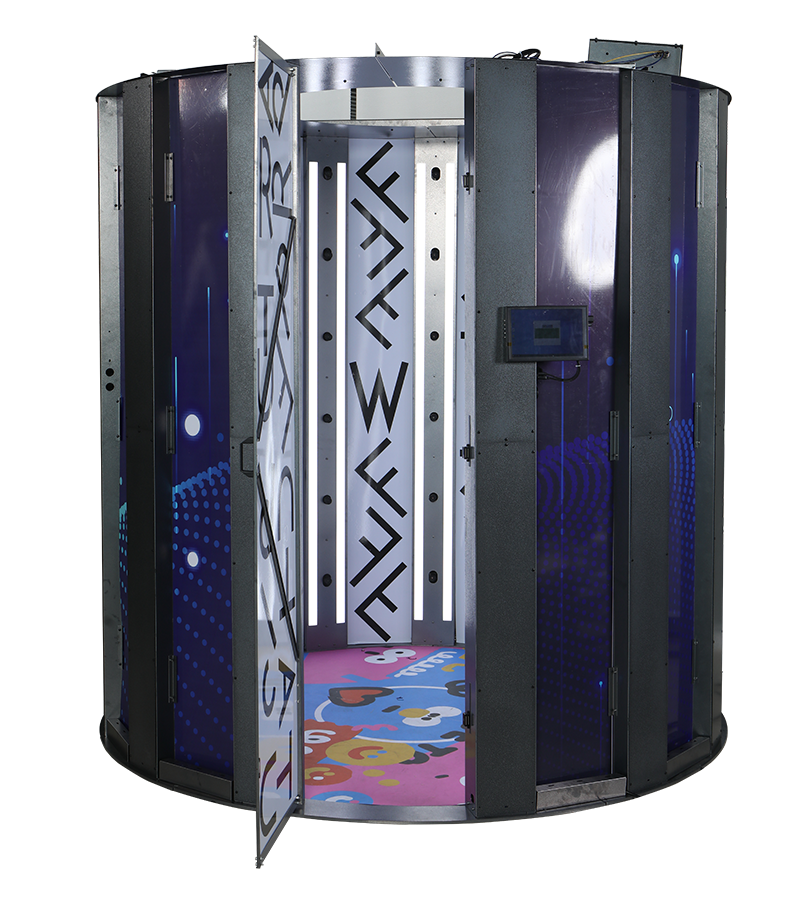

Dreambot3D Human Body Scanner
Producing lifelike, full-color 3D figures generally requires four key elements: a 3D scanner, a statue restoration team, a full-color 3D printer, and a post-processing team. For entrepreneurs and small business owners looking to enter this market, there are two very practical business models, depending on your investment level and operational needs.
The workflow is very simple: after scanning the customer model, the data is sent directly to a professional production team in China, who will handle all work, including model refinement, full-color 3D printing, and post-printing finishing. The entire model production takes about 3-6 days, and international delivery (via DHL/UPS/FedEx) takes 3-6 days, totaling only 6-12 days to deliver the finished figure to the customer.
This model has been successfully operated in major cities around the world and many Southeast Asian countries, allowing companies to provide high-quality 3D figures with minimal startup costs, no local printing infrastructure, and fast delivery times.
With all processes on-site, you can complete scanning, modeling, printing, and post-processing in your own factory, significantly shortening delivery cycles and improving customer satisfaction. This solution is ideal for companies with high print volumes, personalized product lines, or looking to scale quickly.
| Device name | Parameter |
|---|---|
| Model number | G13 Super Pro |
| Image capture chamber | |
| Equipment structure | Central rotating platform is equipped with a multi-arm image acquisition mechanism |
| Equipment weight | 100kg |
| Equipment carry weight | no ground, no limit |
| Equipment size | 225cm*Ø226cm |
| Service power of equipment | 2500W |
| Input voltage | 220V (110v can be customized) |
| Image acquisition system | |
| Camera type | HD high speed industrial camera |
| Camera chip | Full color sony CMOS, 1.2μmX1.2μm, 12Mpix |
| Lens | 1/1.7” Large sensitivity and depth of field industrial camera lens |
| Number of cameras | 78 sets |
| System control mode | Dedicated software system intelligent control |
| Image acquisition mode | |
| Acquisition mode | Multi-camera simultaneous image acquisition mode |
| Acquisition time | 0.01s |
| Image quantity | 78 photos max. |
| Data transmission system | USB3.0 or above high-speed data transmission management system, super Class 6 shielded network cable |
| Lighting system | |
| Lamp source | High display refers to the LED light group module without screen flashing |
| Control system | Dedicated software system intelligent control |
| Power supply configuration | Power input 220V, output 24V |
| Auxiliary equipment configuration (computer and monitor) | |
| By the customer’s own configuration. Minimum configuration: 24 inch display, i5CPU, 16GB memory, 1TB hard disk | |
1. High-Efficiency Multi-Camera Image Acquisition
Equipped with 78 HD high-speed industrial cameras, capable of capturing 78 images simultaneously within 0.01 seconds for ultra-fast scanning.
Multi-camera synchronization mode enhances precision and 3D depth, ideal for high-resolution human or object modeling.
Uses 1/1.7″ industrial lenses with high sensitivity and deep depth of field for detailed and accurate image capture.
2. Smart Software-Controlled System
Features a dedicated intelligent control system that automates image acquisition and hardware operation.
Centralized software control ensures synchronized operation between cameras, lighting, and the rotating platform.
3. Central Rotating Platform with Multi-Arm Setup
The central rotating chamber combined with multi-arm camera layout provides 360° full-body capture, suitable for detailed full-body scans and complex object reconstruction.
4. Professional LED Lighting System
Utilizes high-display LED light modules that ensure no screen flicker and high color rendering.
Powered at 24V via a stable 220V input system, ensuring uniform and consistent lighting throughout the capture process.
5. High-Speed Data Transmission
Supports USB 3.0 or higher, and Class 6 shielded network cables for fast and stable image data transfer.
Ideal for large data volumes and real-time model processing.
6. Large Scanning Chamber
Device size: 225cm × Ø226cm, offering ample space for scanning large objects or full-body human figures.
No weight limit on scanned objects as long as they don’t touch the ground — ideal for standing humans, mannequins, or props.
7. Flexible Peripheral Configuration
Computer and monitor configuration is user-defined, with minimum recommended specs: 24” display, i5 CPU, 16GB RAM, 1TB HDD — enough for professional modeling workflows.
FAQ Guide of Human Body Scanner
- 1. Human Body Scanner
- 2. What is the MOQ(minimum order quantity) for OEM on the scanner? Price?
- 3. Can buy sample of Printed Figurine for market study purpose?
- 4. If the printing by your company, and when receive the Printed Figurine, it has manufacturer defect, what is the return and exchange policy?
- 5. What is the time required for taking a 3D photo? if it is 5 minutes as shown in the attached brochure is a bit too long
- 6. The price quoted is in RMB?
- 7. Is the scanner easy to set up ? for event purpose
- 8. The computer must use PC? Is there any laptop can recommend with the same requirements?
- 9. I buy one scan machine, then I send you information . Do you produces the pieces painted and send me ? Or I must but the printed machine and raw material and produce in our country?
- 10. If you produce , how much is the cost for piece in 9cm finished?
- 11. Do all pieces 9cm have same cost ?
- 12. I sow for example one piece with 2 person and one baby . Is same cost one person?
- 13. Do you offer a cloud service to process the photos into a 3D model? Do you offer a 3D clean up service? After send you information , how many time do you need to send me by courrier?
- 14. Can you samples with free cost ? Can you prepare samples for me ?
- 15. Which and how many cameras are used by your Rotary scanner?
- 16. Do you provide an API to control your scanner and download photos?
- 17. How many persons can scan in same piece ? I sow in tik tok at 5 person of one team
1. What is the floor area required for 1 set? for event purpose
just need the 2.33m diameter area is ok , as the picture shown
2. What is the MOQ(minimum order quantity) for OEM on the scanner? Price?
If just make your logo stick in the platform , one pcs is ok ; if you need to change the whole look , MOQ is 5 or 10 pcs based on the price.
3. Can buy sample of Printed Figurine for market study purpose?
yes , no problem .the sample model price is around 1.5 times of a printed model price list.
4. If the printing by your company, and when receive the Printed Figurine, it has manufacturer defect, what is the return and exchange policy?
before send out the model , we will send you picture and video of model , we will send out after you confirm .if it have been broken by express , it will charge by express company.
5. What is the time required for taking a 3D photo? if it is 5 minutes as shown in the attached brochure is a bit too long
actually it is only a few seconds, the G9-1000 is around 5-8 seconds (also need few seconds to open the machine ), G9-1000 PRO is around 2-5 seconds. The 5 minutes you saw should be the time about the build model ,this part job no need done by your side. you can check our video https://youtube.com/shorts/pw1Py318pt8?feature=share
6. The price quoted is in RMB?
we can quoted in rmb or usd based on your need.The G9-1000 is 38800rmb.
7. Is the scanner easy to set up ? for event purpose
the set up is around one -2 hours , not diffcult.you can check the set up video. https://youtube.com/shorts/V9_vcEeUEog?feature=share
8. The computer must use PC? Is there any laptop can recommend with the same requirements?
Our scanner is already with a computer , you can download /copy the photos from it easy . If you don;t need to build a model , no need computer more ; so no limited about this , even build model laptop also can work .
9. I buy one scan machine, then I send you information . Do you produces the pieces painted and send me ? Or I must but the printed machine and raw material and produce in our country?
A:Generally, making full-color 3D human figurines involves two devices: a 3D scanner and a full-color 3D printer. There are two corresponding solutions:
- If you want to open a store, you only need to purchase one device: the human figure 3d scanner.
You can send the collected data back to the manufacturer for printing, The Statue restoration Team work ,3d printing work and model post-processing work all will done in China. Then whole processing for model time is around 3-6 days, and then shipping time (DHL /UPS /FEDEX) is about 3-6 days, for a total around 6-12 days.
Many customers in major cities in China and many countries in Southeast Asia have made human figurines using this way. The initial stage only requires the purchase of a human figure 3d scanner, and a shop area of 10 square meters or more can be easily opened.
- If you have sufficient budget and want high efficiency, you can purchase both the 3D scanner and the full-color 3D printer at the same time.
The full-color 3D printer set is about USD 120000, so most customers will choose solution 1 when they have a small printing volume and a low budget in the initial stage.
10. If you produce , how much is the cost for piece in 9cm finished?

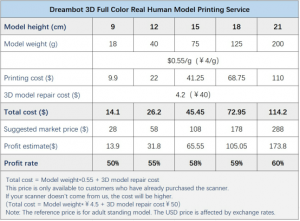

We usually have four model sizes: 9,12,15,18 and 21cm,also we can make some bigger size if you need . The smallest 9cm model costs about $14, 12cm model is around $26, 15 cm model is around $46 , 18cm model is around 73 and 21cm model is around $114.The market price is around double of this cost. the cost is based on the weight of model. The price is not including express cost , the cost is based on the quantity and package size and different time.normally we suggest customer send 10-20 pcs models one time .
11. Do all pieces 9cm have same cost ?
It’s different. We charge according to the materials we consume.
The fee for a normal adult, as shown above, is about $14.
But for example, a child is 9cm, squatting, and wearing heavy clothes. This increases the volume of the print.
12. I sow for example one piece with 2 person and one baby . Is same cost one person?
The larger the size, and the greater the weight, so the more materials consumed, the more expensive the price.
13. Do you offer a cloud service to process the photos into a 3D model? Do you offer a 3D clean up service? After send you information , how many time do you need to send me by courrier?
Yes, you just send the collected data back to us;we will make the photos into a 3D model, and then print it out.The Statue restoration Team work ,3d printing work and model post-processing work all will done in China. Then whole processing for model time is around 3-6 days, and then shipping time (DHL /UPS /FEDEX) is about 3-6 days, for a total around 6-12 days.
14. Can you samples with free cost ? Can you prepare samples for me ?
The sample is not free, As you can see, printing cost is not cheap to make a figurine.All the samples we will charge the cost . Yes， we can prepare some samples for you .
15. Which and how many cameras are used by your Rotary scanner?
The G9-1000 is single rod with 6 pcs cameras (around $4980 to $5500) , the G9-1000 PRO is three rods with 18 pcs cameras (around $11800 to $12800) . We use SONY Full-color CMOS, 1.2μm x 1.2μm, 12 MP. The effect of the photo is high precision.As the picture shows, our lens is larger than that of other scanners.
16. Do you provide an API to control your scanner and download photos?
Our scanner is with computer together , each rod with one computer ; So you can wirelessly transfer the data to your computer over the Internet, or you can use USB to copy the data on the scanner’s computer.

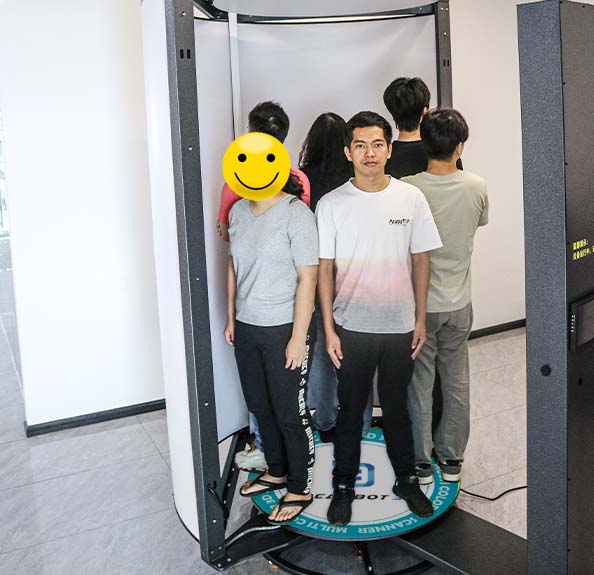

17.How many persons can scan in same piece ? I sow in tik tok at 5 person of one team
Our scanner”s plate based is 1m diameter with thickness frame, it can hold on 6 to 8 person no problem . But for consider the details effect, we recommend scanning up to 2 adults and 1 child at a time.
If you need to scan more people at one time, for example 5 to 8 people , better to purchase the G9-1000 pro , it can make sure the details . Many person scan in a time, that must be matrix camera scanner, many cameras.
There will be some places that can not be scanned, the scanning effect is not as good.
