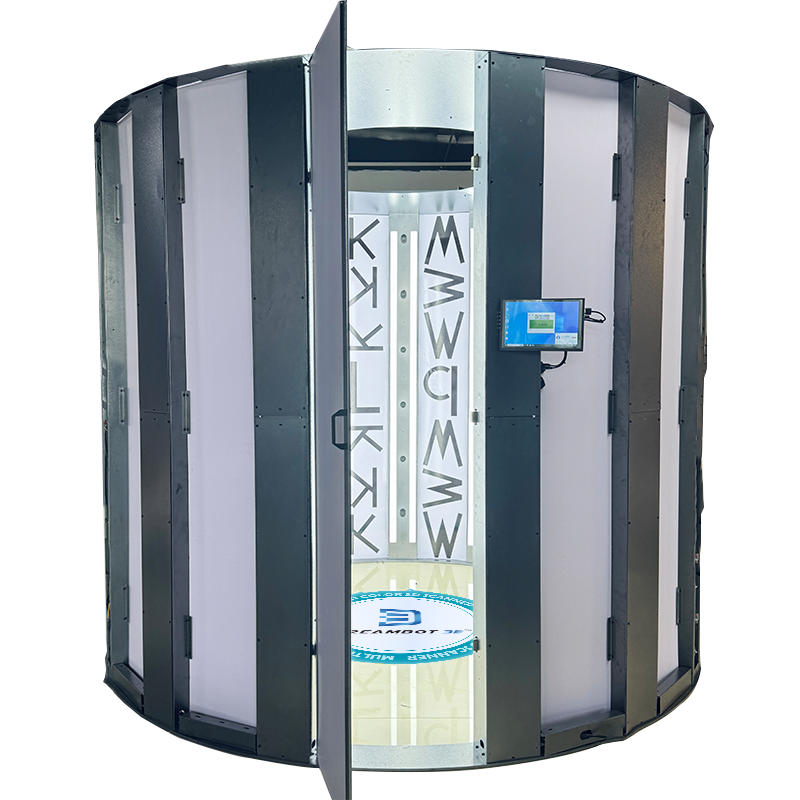

3D Body Scanner For 3D Printing
G15 Super Pro
- Capture up to 90 images in 0.01s for ultra-fast 3D scanning.
- Ensures full-angle, no-blind-spot image capture.
- 8MP, 2.0μm pixels with high-sensitivity industrial lenses.
- Fully automated, intelligent system operation.
Dreambot3D 3D Body Scanner For 3D Printing
Whether as a startup project or an extension of an existing business, custom 3D portrait modeling is a highly promising market.
We offer two mature operating models for you to choose from: For entrepreneurs with limited budgets, we recommend an outsourcing production model. You only need to invest in a 3D scanner (priced between $4,680 and $19,800) and a small display space (over 10 square meters). After customers complete the scanning, the data is sent to our partner factory in China for printing and post-processing. The entire cycle takes about 6 to 12 days (including international shipping). This model has been successfully validated in multiple Asian markets. For investors with sufficient capital and a desire for efficient operations, we suggest setting up a complete in-house production line. In addition to the scanner, you will need to purchase a full-color 3D printer (around $120,000).
This allows the whole process—from scanning to finished product—to be completed within 1 to 2 days, with a daily capacity of 44 to 88 pieces. It is especially suitable for high-traffic commercial areas or tourist attractions. The entire production process includes rapid scanning (only takes a few seconds), automatic modeling (about 10 minutes), fine retouching (30 to 120 minutes), batch printing (10 to 13 hours to complete 44 models at 9 cm height), and support removal and post-processing (1 to 2 hours). We have observed that this project is particularly suited for occasions such as wedding mementos, birthday gifts, and family keepsakes.
Numerous successful cases already exist in major Chinese cities and Southeast Asian countries. Startup entrepreneurs typically choose the lower-cost outsourcing model initially, then consider upgrading to in-house production once the business volume stabilizes. You can select the operating method that best fits your local market demand, budget, and expected return on investment. If you need more detailed equipment specifications or business plan consultations, our professional team is always ready to support you.
| Device name | Parameter |
|---|---|
| Model number | G15 Spuer Pro |
| Image capture chamber | Equipment structure: Central rotating platform is equipped with a multi-arm image acquisition mechanism |
| Equipment weight: 320kg | |
| Equipment carry weight: / | |
| Equipment size: 235cm*Ø285cm | |
| Service power of equipment: 3600W | |
| Input voltage: 220V | |
| Image acquisition system | Camera type: Hd high speed industrial camera |
| Camera chip: Full color sony CMOS, 2.0μm*2.0μm, 8Mpix | |
| Lens: 1/1.7″ Large sensitivity and depth of field industrial camera lens | |
| Number of cameras: 90 sets | |
| System control mode: Dedicated software system intelligent control | |
| Image acquisition mode | Acquisition mode: Multi-camera simultaneous image acquisition mode |
| Acquisition time: 0.01s | |
| Image quantity: 90 photos max. | |
| Data transmission system | USB3.0 or above high-speed data transmission management system, super Class 6 shielded network cable |
| Lighting system | Lamp source: High display refers to the LED light group module without screen flashing |
| Control system: Dedicated software system intelligent control | |
| Power supply configuration: Power input 220V, output 24V | |
| Auxiliary equipment configuration (computer and monitor) | By the customer’s own configuration. Minimum configuration: 24 inch display, i5 CPU or above, 16GB or above memory, 1TB hard disk |
Multi-Camera Synchronous Acquisition
Equipped with 90 HD industrial cameras, capable of capturing up to 90 photos in just 0.01 seconds, significantly improving image acquisition efficiency.
Five-Arm Rotating Platform Design
The central rotating platform with multi-arm image acquisition mechanism ensures full 360° coverage with no blind spots.
High-Definition Imaging System
Utilizes full-color Sony CMOS sensors (8M pixels, 2.0μm pixel size) paired with 1/1.7″ large sensitivity industrial lenses for sharp, detailed imaging.
Intelligent Software Control
The system runs on a dedicated intelligent control software, enabling automated, synchronized, and precise operations.
High-Intensity Flicker-Free LED Lighting
Features a high-display LED light group module, providing consistent and flicker-free lighting to enhance imaging quality.
High-Speed Data Transmission
Supports USB 3.0 or above, combined with super Class 6 shielded network cables, ensuring fast and stable data transfer.
Powerful Electrical Configuration
Operates at 3600W power, 220V input, with 24V output for lighting and control systems to ensure stable and reliable performance.
FAQ Guide of 3D Body Scanner For 3D Printing
- What do you suggest me? to buy scan machine only and send information you to produce pieces or to buy printed too ?
- 2. What is the time to emsably and disambly of the 3d scanner ?
- 3. Can you give me the HS of the scanner and printer to calculate tax here?
- 4. 13.Is big difference for G9-1000 and G9-1000 PRO ? Can you send me pictures of 3 types to see difference ?
- 5. how much each figure is going to cost me ? according to the sizes ?
- 6. from where i get the ingredients ?
- 7. how much time it takes from taking the photo to have a complete figure ? if i buy the printer ?
- 8. who is painting the figure ? machine or human worker ?
- 9. how do you help me with problems with operating the machine ?how many years you are responsible for the machine ? and what about extra parts ?
- 10. how many machines do you have working abroad ?
1. What do you suggest me? to buy scan machine only and send information you to produce pieces or to buy printed too ?
This kind of printer is very expensive. The printing process is complicated.You need the Statue restoration Team work ,3d printing team work and model post-processing team work,at least 2-3 person.
If you just buy one scanner to set up a shop ,we don’t recommend all the client to consider printer for start a small business.
But if you want to carry out this business throughout your country,plan to open 10 or even more shops, then I recommend that you need to buy a printer
3. Can you give me the HS of the scanner and printer to calculate tax here?
3D scanner: 9031499090 3D printer: 8485200000

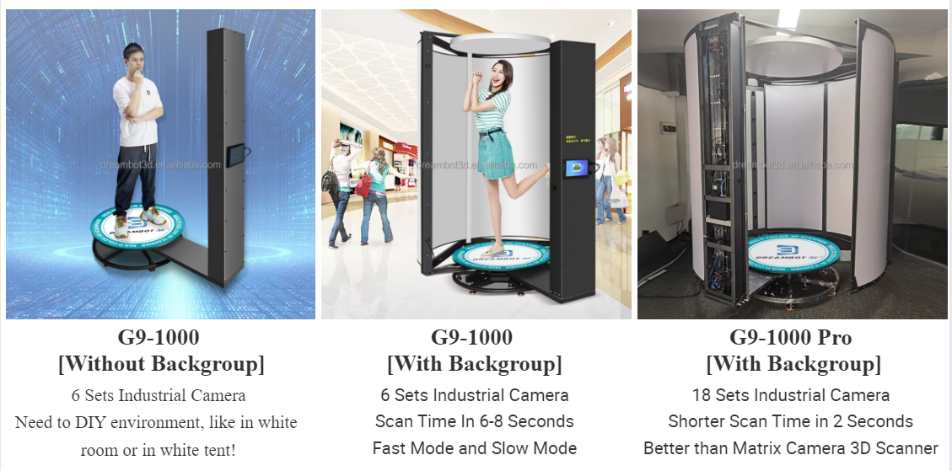

4. 13.Is big difference for G9-1000 and G9-1000 PRO ? Can you send me pictures of 3 types to see difference ?
Model | Number of cameras | Number of shots | Scanning time |
G9-1000 | 1 set(6 pcs) | 300 Photos | 7-10 s |
G9-1000 Pro | 3 sets(18 pcs) | 324 Photos | 1-2 s |
Our scanner’s superior in configuration .
5. how much each figure is going to cost me ? according to the sizes ?
The cost is based on weight . we support the printing service is around $0.65 per g;if you have printer , print it by yourself ,the cost is around $0.3 per g.The materials cost is much less , but you need to have the Statue restoration Team work ,3d printing team work and model post-processing team work,at least 2-3 person.
6. from where i get the ingredients ?
We will offer you the materials ,resin. All the sparepart and resin price list we already send you , please check the quotation list .
7.how much time it takes from taking the photo to have a complete figure ? if i buy the printer ?
You take photos just few seconds ,get collected data , make the photos into a 3D model need around 5-10 minutes for each model , if need to fix the model still need half hour or few hour (based on your worker ). Only half day you can to start to print .
The printer can print 40 pcs 9cm models one time , one time is around 9-11hours.You can print out 80 pcs 9 cm models one day.
Then also team to make model post-processing work, around half day. Normally you can get the complete figure one day or two day if your team work well.
8. who is painting the figure ? machine or human worker ?
If you buy the full color 3d printer (around $11800 to 128000) After finished the printing , clean ,the model is finished color , no need to paint.
If you buy the normal printer , print the model with only single color , you need to painting it by human worker.
9. how do you help me with problems with operating the machine ?how many years you are responsible for the machine ? and what about extra parts ?
Product quality warranty one year, the product quality problem within the warranty period for free spare parts replacement . Spare parts after the warranty period damage and change,we will charge materials cost.Any problem or spare parts replace , we will supply instruction and video guide; We also can apply technology online support, video call support .
10. how many machines do you have working abroad ?
Scanner machine we already sell out over few hundreds in other country . But the full color printer machine most sell in China market , for oversea market no so much , because the cost is too much high.
